Freeform vector graphics with controlled thin-plate splines

Freeform vector graphics with controlled thin-plate splines
Mark Finch, John Snyder, Hugues Hoppe.
ACM Trans. Graphics (SIGGRAPH Asia), 30(6), 2011.

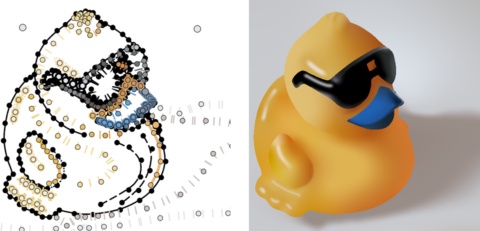

Rich set of curve and point controls for intuitive and expressive color interpolation.

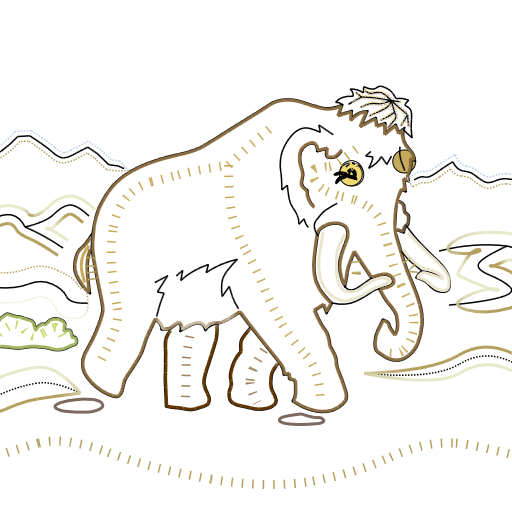

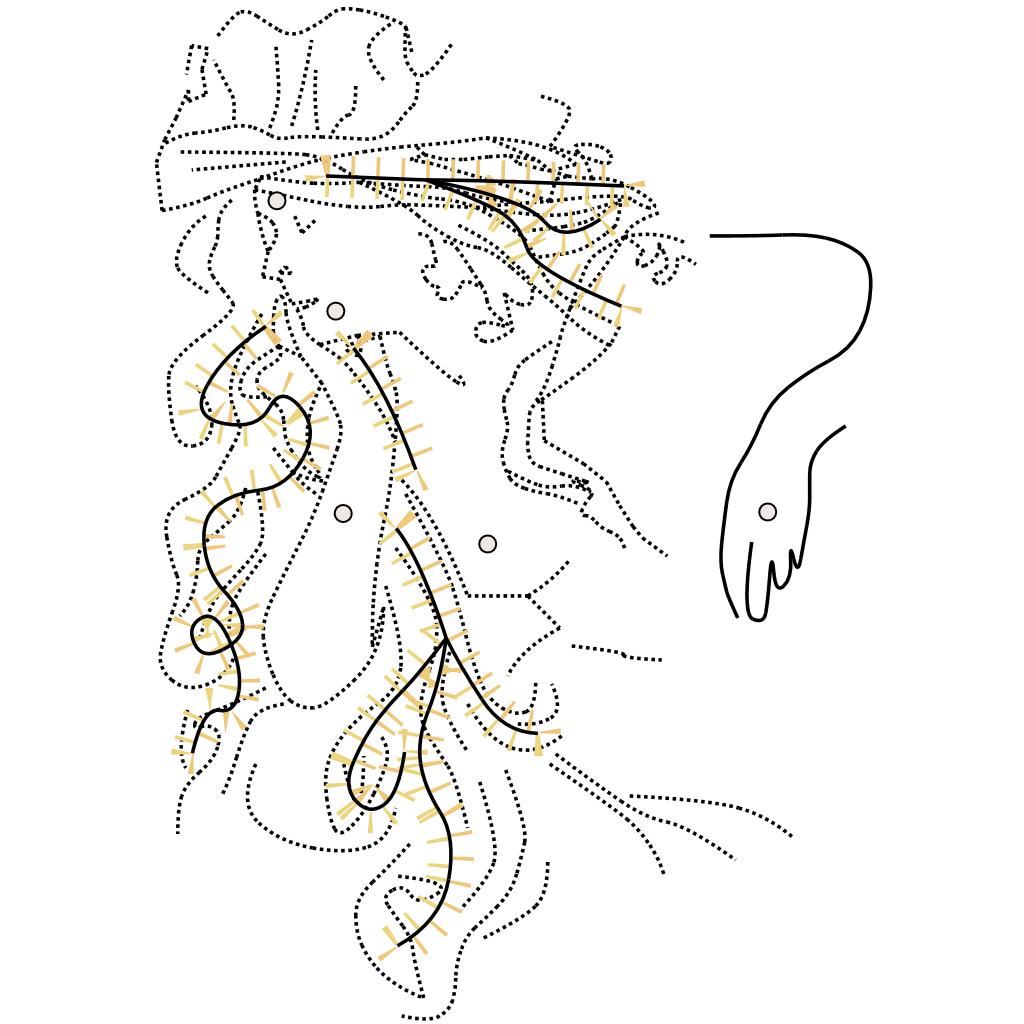

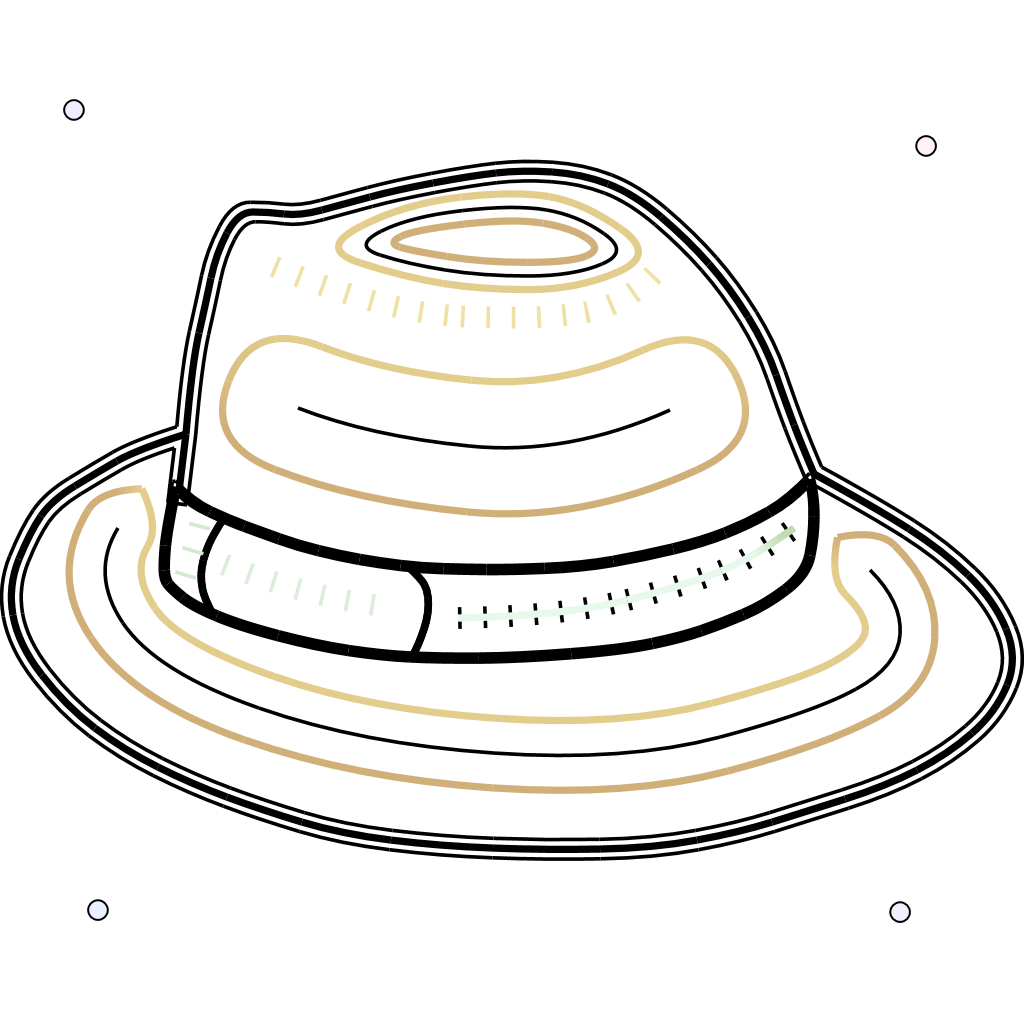

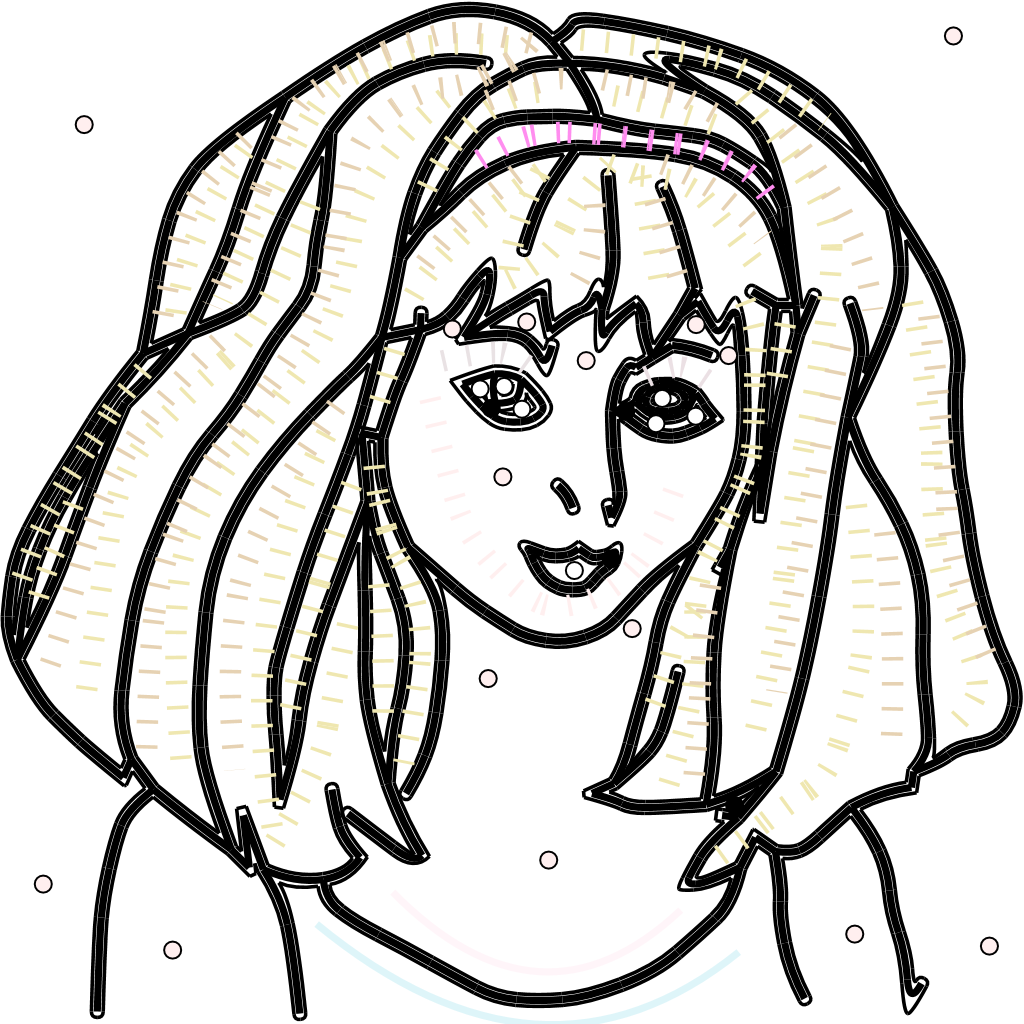

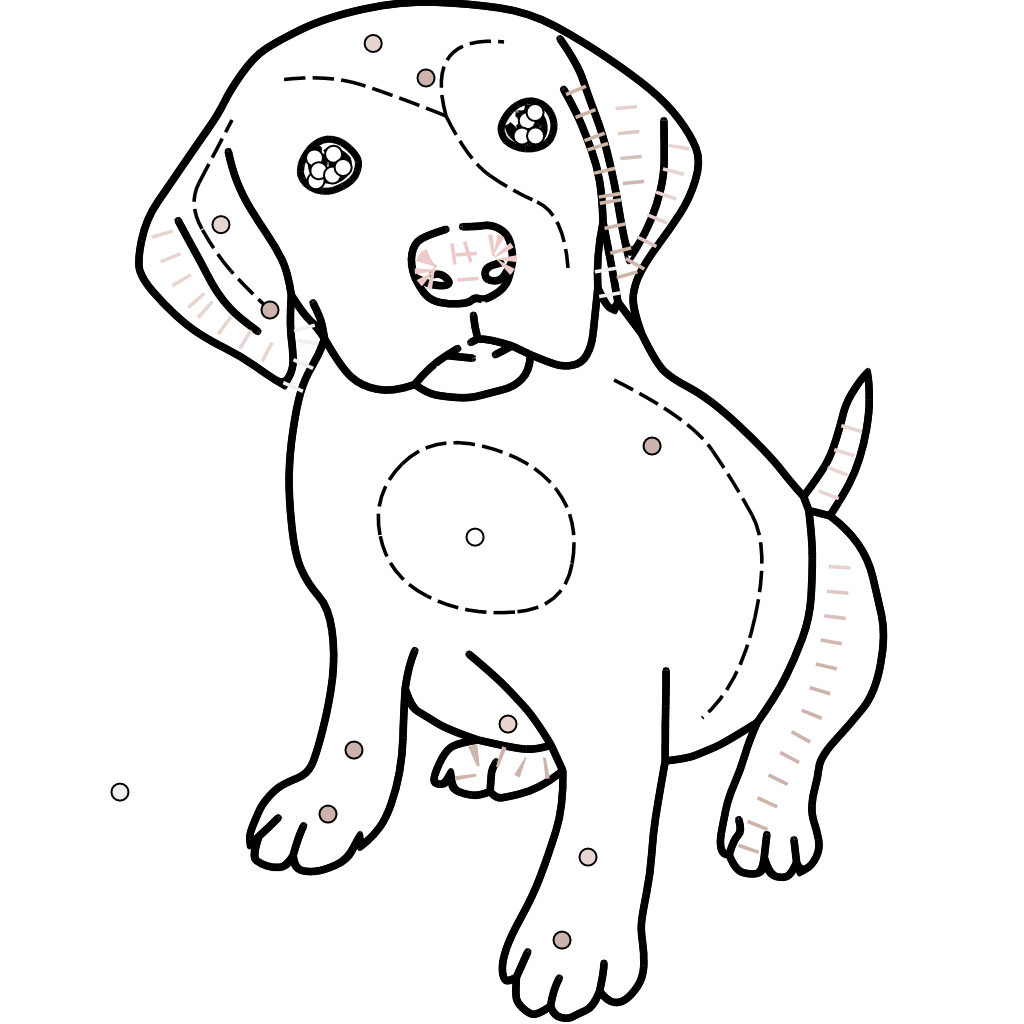

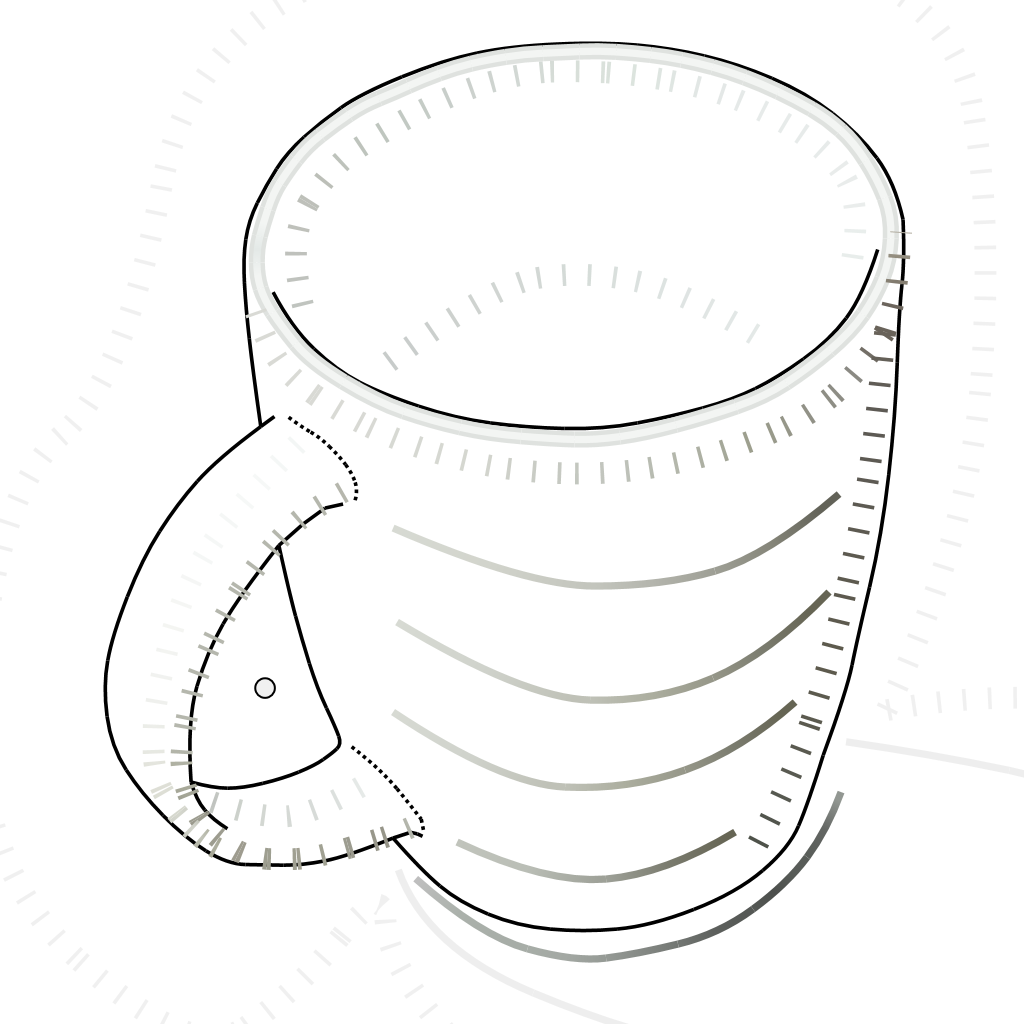

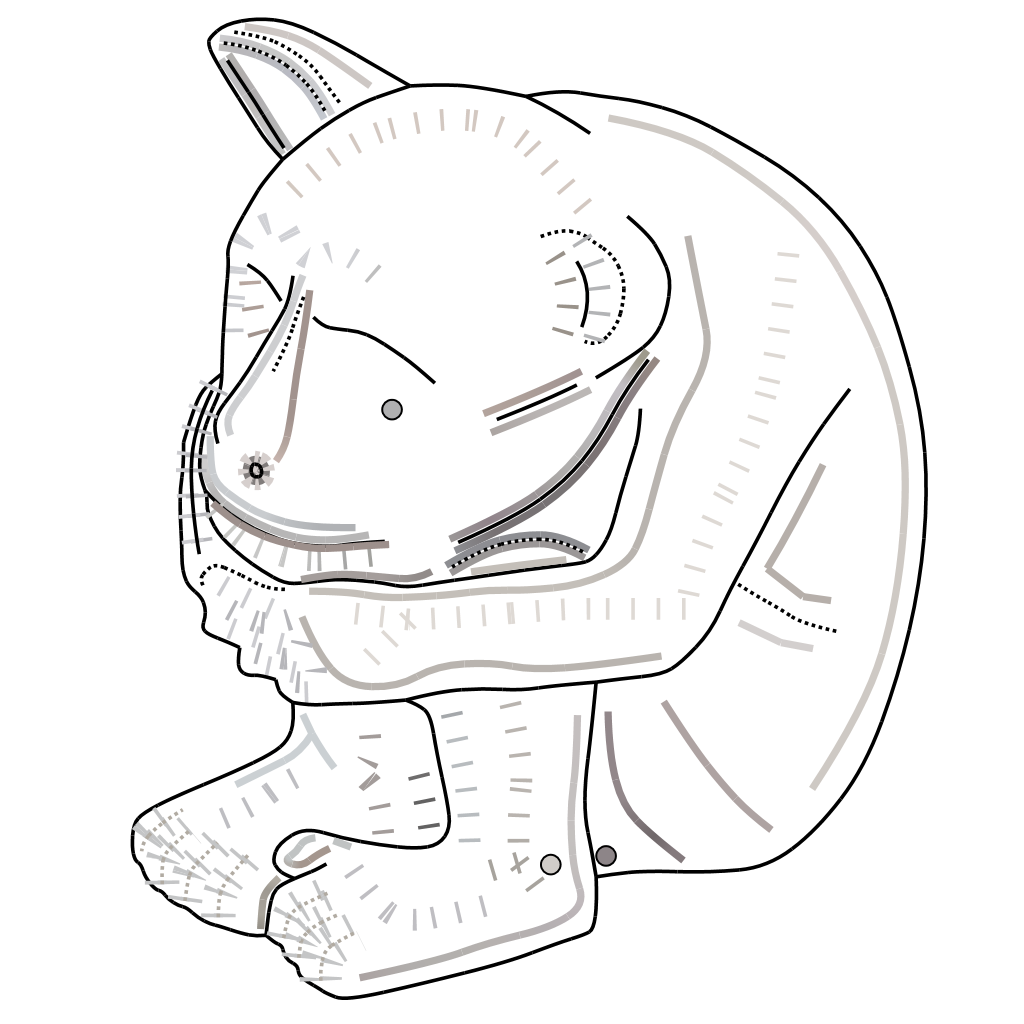

Abstract: Recent work defines vector graphics using diffusion between colored curves. We explore higher-order fairing to enable more natural interpolation and greater expressive control. Specifically, we build on thin-plate splines which provide smoothness everywhere except at user-specified tears and creases (discontinuities in value and derivative respectively). Our system lets a user sketch discontinuity curves without fixing their colors, and sprinkle color constraints at sparse interior points to obtain smooth interpolation subject to the outlines. We refine the representation with novel contour and slope curves, which anisotropically constrain interpolation derivatives. Compound curves further increase editing power by expanding a single curve into multiple offsets of various basic types (value, tear, crease, slope, and contour). The vector constraints are discretized over an image grid, and satisfied using a hierarchical solver. We demonstrate interactive authoring on a desktop CPU.
Hindsights: We should have mentioned the work of [Xia et al. 2009. Patch-Based Image Vectorization with Automatic Curvilinear Feature Alignment] which also introduces higher-order color reconstruction for vector graphics. It optimizes parametric Bezier patches with Thin-Plate Spline color functions to approximate a given image.
